Foam Cutting Router

Multi Functional Six Sides CNC Foam Cutting Router With Taiwan LNC Control System

All Category

Stainless Steel Gastronorm Pan

Commercial Cooking Equipment

Mr. stailesspro

bill@stailesspro.com

17685827989

Contact Now

Multi Functional Six Sides CNC Foam Cutting Router With Taiwan LNC Control System

Brand Name:	GTS
Price:	CN¥182,747.50/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Cnc Or Not:

CNC

Machine Type:

6 Surfaces

Max.working Width(mm):

1200

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

Bearing, Motor, Pump

Place Of Origin:

Shandong, China

Brand Name:

Superstar CNC

Voltage:

380V

Dimension(l*w*h):

5100*2850*1800mm

Warranty:

1 Year

Weight (kg):

2000

Power (kw):

18.7

Key Selling Points:

Automatic

Length Of X Axis Grip Guide Rail:

5400mm

Travel Y-axis:

1200mm

Z-axis Stroke:

150mm

X Axis:

54000r/min

Y Axis:

54000r/min

Z-axis:

15000r/min

Min Size (L * W):

200*50mm

Max Size (L * W):

2800*1200mm

Up Drilling:

9 Vertical Drills

Below Drilling:

6 Vertical Drills

Highlight:

CNC Foam Cutting Router

Six Sides Foam Cutting Router

Product Description

Multi-Functional Six Sides CNC Drilling Woodworking Machine For Wooden Door

Product Description

Multi-Functional Six Sides CNC Drilling Woodworking Machine For Wooden Door

Six Sides Drilling Machine Features:

The machine frame is precisely processed by the CNC gantry machining center. Frame structure: heavy bed, precision welding, laser cutting, frame bed, high temperature tempering, aging treatment, remove internal stress, enhance rigidity, and ensure the stability of the bed. Six side machining: without shunting, one equipment can realize the machining of six faces and the slotting of the front and back faces. Double drill bag: 2+1 drill bag mode is adopted to improve efficiency by 30%. Drilling workstation: multiple drilling center workstations can be formed to realize streamlined operation.

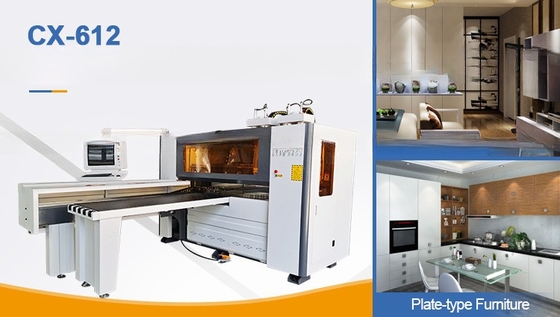

Items			CX-612A single drilling bag	CX-612B double drilling bags
Working area	Length of X axis grip guide rail	5400mm
		Travel Y-axis	1200mm
		Z-axis stroke	150mm
Max Speed	X axis	54000r/min
		Y axis	54000r/min
		Z axis	15000r/min
Working size	Min size (L * W)	200*50mm
		Max size (L * W)	2800*1200mm
Number of tools	Up drilling	9 vertical drills	9 vertical drills*2
		Below drilling	6 vertical drills
		Up drilling(XY direction)	4 horizontal drills	4 horizontal drills*2
Frequency converter			Inovance 380V4KW*2sets
Principal axis			HQD 380V 4KW*2sets
Work-piece thickness			12-30mm
Overall dimensions of the machine			540027502200mm
Drill bag brand			Taiwan
Control system			Taiwan LNC
Servo drive motor			Inovance Servo motor
CAM software			Higerman
Guide			Taiwan ANDE
Rack			German grinding ruler
Ball screw			Taiwan ANDE
Reducer			SHIMPO

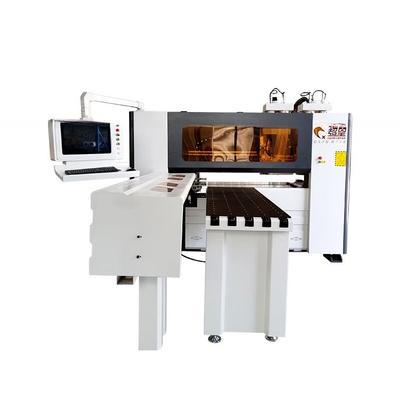

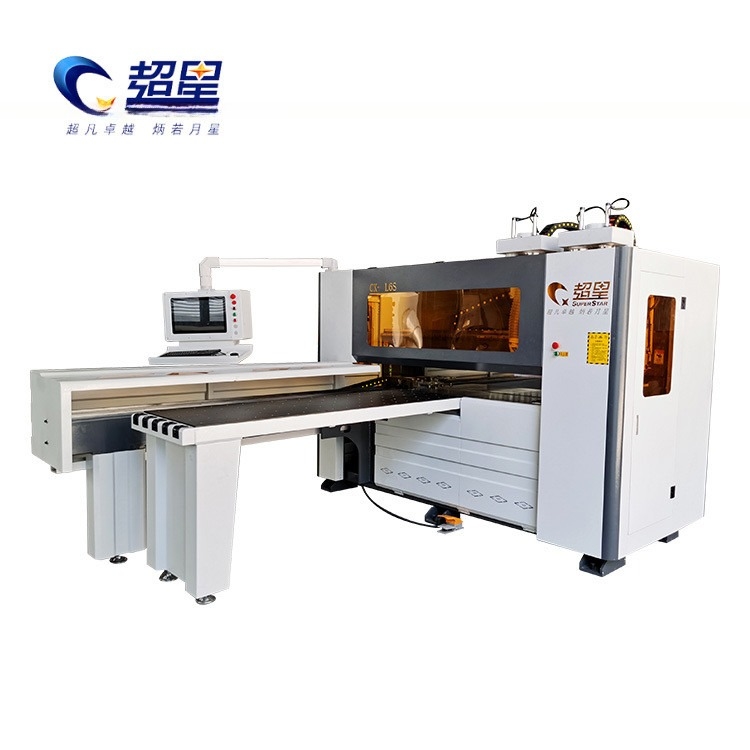

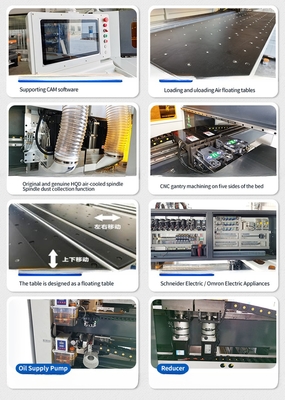

Detailed Images

Application:

Company Information

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Please feel free to send us inquiry or message to know more about the machine

Response will be within 1 minutes during working time, And within 6 hours during off duty time

If you haven't found the machine you need, don't hesitate to contact us too. We
Superstar had been in this industry since 2003, will do best to give you the best suggestion
