Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine
All Category

Panel Furniture Solution

Wooden Door Solutions

Woodworking Router

Stone Cutting Router

Foam Cutting Router

Additional CNC Machines
Contact Us
Mr. stailesspro
bill@stailesspro.com
17685827989
Contact Now
Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine
  • name
  • name
  • name
  • name
  • name
  • name

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine

Brand Name: GTS
Price: CN¥27,046.63/sets 1-3 sets
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Range Of Spindle Speed(r.p.m):
1 - 24000 Rpm
Positioning Accuracy (mm):
0.05 Mm
Number Of Axes:
3
No. Of Spindles:
Single
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (x Axis)(mm):
1300 Mm
Travel (y Axis)(mm):
2500 Mm
Repeatability (x/y/z) (mm):
0.05 Mm
Spindle Motor Power(kw):
3kw
Cnc Or Not:
CNC
Place Of Origin:
Shandong, China
Brand Name:
Superstar
Voltage:
AC380V/50HZ
Dimension(l*w*h):
1300*2500*250mm
Power (kw):
3
Weight (kg):
1200
Control System Brand:
NC Studio, DSP, RichAuto
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox
Control System:
Nc Studio Or Dsp
Spindle Power:
3.0 Kw 4.5kw 6.0kw
Motor And Driver:
Stepper
Inverter:
7.5kw Inverter
Spindle Speed:
0-24000rpm/min
Guide Rail:
25mm Square Rail
Command Language:
G-code
Max. Working Speed:
25m/min
Control System Brand:
ArtCAM
Transmission:
X/Y Axis Is Rack Gesr,Z Axis Is Screw
Condition:
New
Warranty Of Core Components:
1 Year
Applicable Industries:
Garment Shops, Machinery Repair Shops, Home Use, Food & Beverage Shops, Advertising Company, Woodworking Industry
Highlight:

Custom Cnc Woodworking Machine

,

1325 Wood Cnc Router Machine

,

5 Axis Wood Cnc Router Machine

Product Description



1325 Cnc Router Machine For Wood Wood Cnc Routers 5 Axis Cnc Woodworking Machine

Product Description
1325 cnc router machine for wood wood cnc routers 5 axis cnc woodworking machine

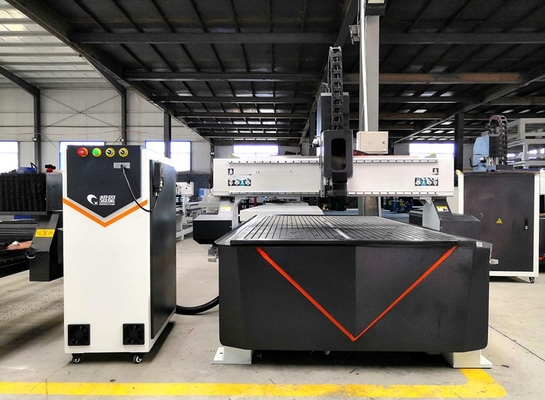

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 0



Wood Router Machine Features:



1. The XYZ axis of our company's engraving machine adopts linear slides, high-precision four-row ball dust-proof and anti-riot slider, strong stability, heavy bearing, high precision, high speed and no abnormal noise. The Z axis screw adopts Taiwan TBI ball screw. It runs smoothly, smoothly, without gaps, and has high engraving accuracy.

2. The Nc-stuido card control system adopts a unique intelligent budget rule to give full play to the potential of the motor to realize high-speed processing, synchronous curve and straight line, and more perfect curve. The XDW system can retrieve the lost parameters, even if the computer is changed, the parameters can be retrieved with one click, and the DSP system is convenient and quick

3. Good software compatibility, compatible with a variety of CAD/CAM design and production software such as type3/Artcam/Castmate/Wentai, and various G code path diagrams.

4. The frame of the whole machine is tempered at 680 degrees, and it will not be deformed for 20 years. It is finished by a 5-side milling gantry machining center, and the accuracy of the machine tool is 0.02mm.
Description
Parameter


X Y Z axis working area
1300mm*2500mm*200mm optional 1300mm*2500mm*200mm


Guide rail
square rail


Spindle
3KW water cooling spindle or 4.5 5.5kw water air spindle


transmission way
helical gear reck for XY axis, ball screw for Z axis


Machine accuracy
0.01mm


control system
NC STUDIO OR DSP or XDW


Machine table
vacuum table


Driving system
stepper drive and motor


Detailed Images

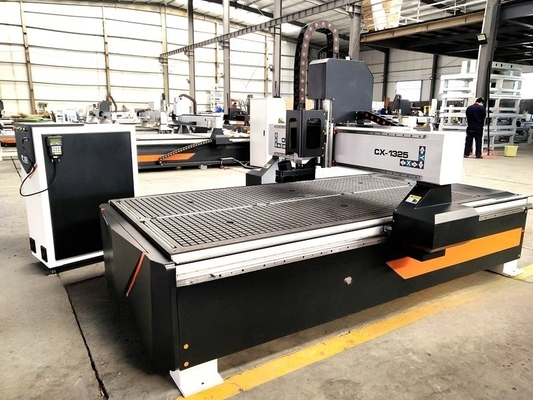

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 1
Application:
Advertising industry: acrylic cutting, MDF engraving cutting and engraving, wood decoration products making. Recommend model CX1325 cnc wood router.

wood door: MDF and wood door engraving, recommend model: CXM25 cnc router 1325

wood furniture: cabinet door making with complicated design, recommend model:Multi- heads pneumatic ATC router cnc, Linear auto tool changing cnc router, Carousel wood cnc router with 12 disc tools

Panel furniture: wood panel cabinet making, recommend model: automatic loading unloading penal processing cnc router with drilling/boring bits.

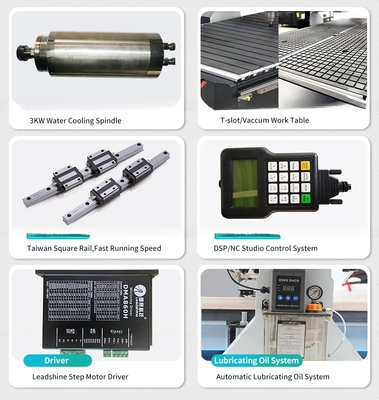

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 2

Why Choose Us
Why choose us?

We are professional machinery manufacturer,we will provide good quality machines.

We provide technical support and operation training.

We have 20 years of R&D and production experience.

We have a complete after-sales service system in the process of using machines.

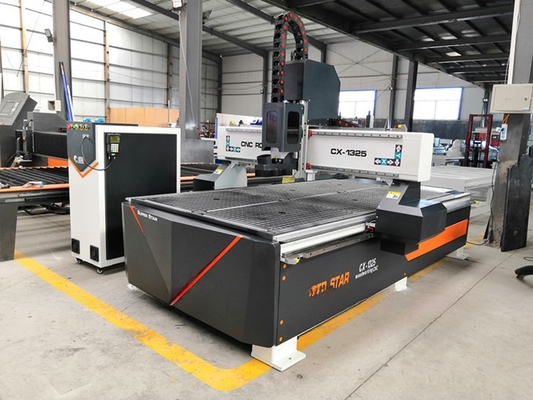

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 3

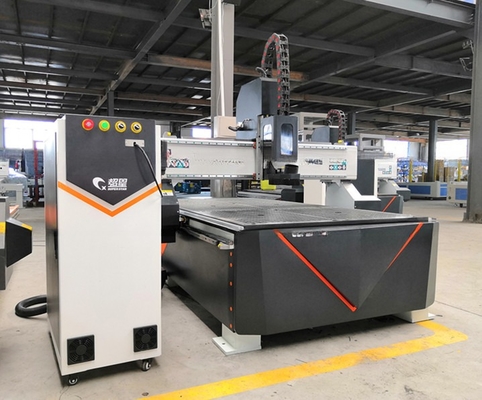

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 4

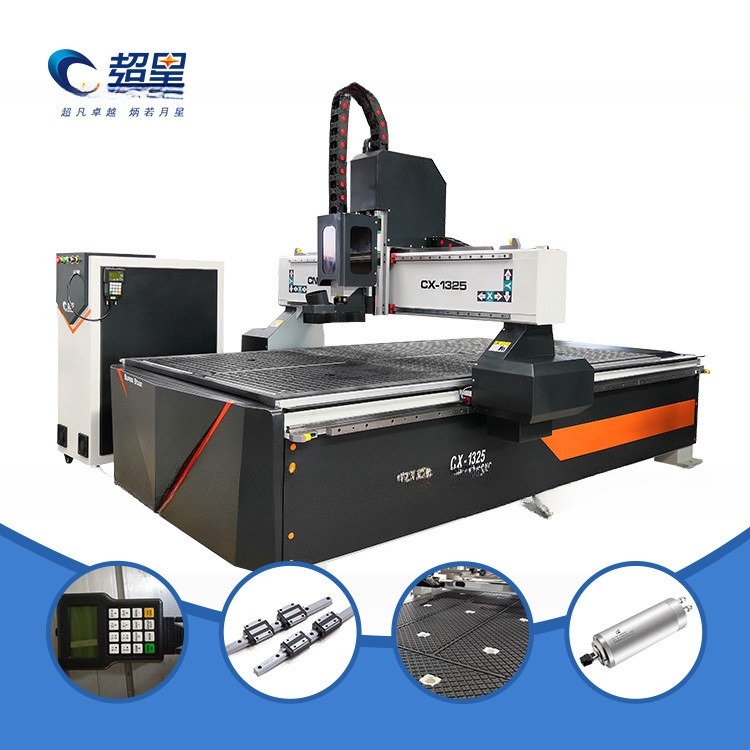

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 5
Company Information

Custom 1325 Wood Cnc Router Machine , 5 Axis Cnc Woodworking Machine 6
FAQ
Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department.   Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM   Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.   Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.   Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service.   Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
