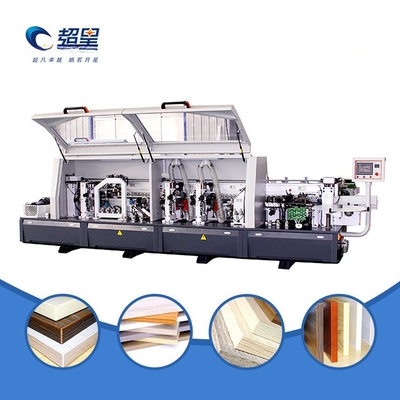

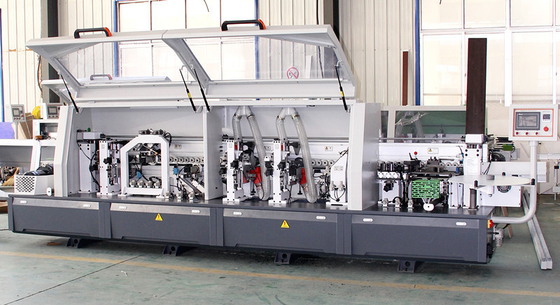

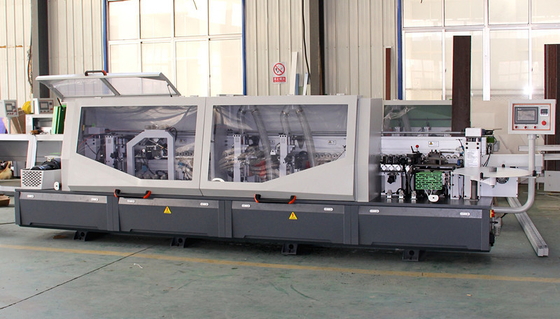

Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming
  • name
  • name
  • name
  • name
  • name
  • name

Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming

Brand Name: GTS
Price: CN¥86,987.81/sets 1-2 sets
Detail Information
Product Description
Detail Information
Place of Origin:
Shandong, China
Place Of Origin:
Shandong, China
Type:
Edge Banding Machine
Brand Name:
Superstar
Voltage:
220v
Dimension(l*w*h):
5500*1100*1600
Power (kw):
12.5
Weight (kg):
2500 Kg
Warranty:
1 Year
Function:
Corner Trimming, Cleaning, Gluing, Fine Trimming, Rough Trimming, End Trimming, Scraping, Buffing
Panel Feed Speed(m/min):
22m/min
Video Outgoing-inspection:
Provided
Core Components:
Bearing, Motor, Pump
Usage:
MDF Production
Model:
CX-465D
Feeding Speed:
18-23m/min
Edge Thickness:
0.4-3mm
Panel Thickness:
10-60mm
Panel Length:
Min.120
Panel Width:
Min.60
Work Pressure:
0.6Mps
Min Panel Size:
150(L)*150(w)mm
Motor Power:
12.5kw
Ocerall Size:
5760*900*1560
Condition:
New
Warranty Of Core Components:
1 Year
Applicable Industries:
Manufacturing Plant, Home Use, Construction Works , Advertising Company, Woodworking Industry
Highlight:

Double Trimming Pvc Edge Banding Machine

,

High Precision Pvc Edge Banding Machine

Product Description
Automatic Pvc Edge Banding Machine Superstar Manufacture With Double Trimming And Pre-Milling Corner Trimming
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 0
Product Description

automatic pvc edge banding machine superstar manufacture with double trimming and Pre-milling corner trimming

Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 1

Woodworking Edge Banding Machine Advantages:


1. Adopt imported motor and high quality electrical component.

2. High precision and work efficiency.

3. Automatic and precise gluing procedure as well as integrated double finish.

4. Glue evenly, conveying stability
Technical Paramaters:

Feeding speed
18-22m/min
Edge Thickness
0.4-3mm
Panel Thickness
10-60mm
Panel Length
Min.120
Panel Width
Min.60
Work pressure
0.6Mps
Min panel Size
150(L)*150(w)mm
Motor Power
12.5kw
Ocerall size
5760*900*1560
Weight
2500kg
PS: All the working area and specifications can be customized according to your requests.

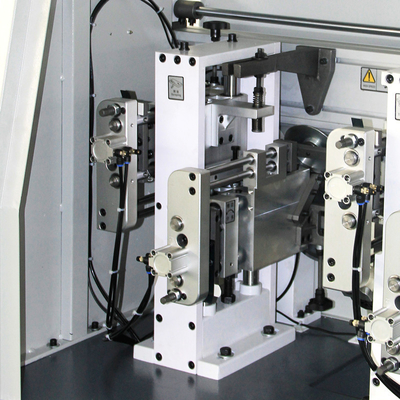

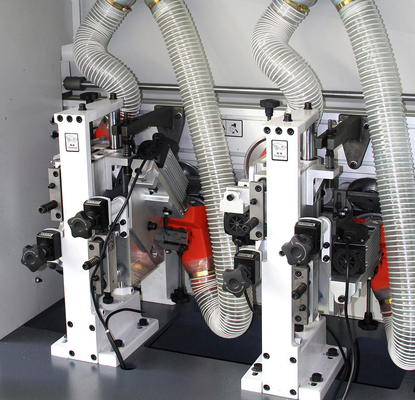

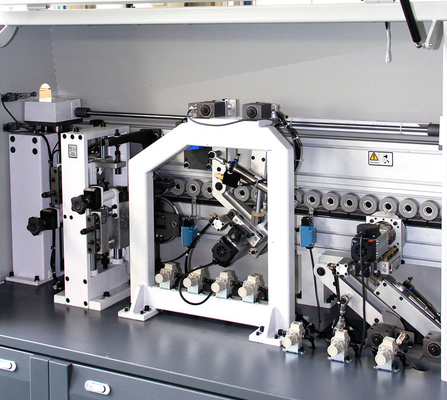

Detailed Images
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 2
Application:
1.Edge banding machine in woodworking is used in banding edge of desks,carbinet,wardrobe and stright line furniture.The edge bander can be PVC,melamine,wood based works and so on,with powerful fuctions as edge feeding,sticking,material cutting,front-back trimming.

2.Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 3

Why Choose Us
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 4
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 5
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 6




We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 7
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 8
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 9
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 10
Automatic Pvc Edge Banding Machine With Double Trimming And Pre Milling Corner Trimming 11
Please Feel Free To Send Us Inquiry Or Message To Know More About The Shipping Response Will Be Within 1 Minutes During Working Time, And Within 6 Hours During Off Duty Time.
FAQ
Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department.   Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM   Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.   Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.   Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service.   Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
