9kw 3 Axes Atc Cnc Router Woodworking Machinery With Kandy Control System

Brand Name:	GTS
Price:	CN¥87,718.80/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Range Of Spindle Speed(r.p.m):

18000 - 24000 Rpm

Positioning Accuracy (mm):

0.05 Mm

Number Of Axes:

No. Of Spindles:

ATC

Working Table Size(mm):

1300×2500

Machine Type:

CNC Router

Travel (x Axis)(mm):

1300 Mm

Travel (y Axis)(mm):

2500 Mm

Repeatability (x/y/z) (mm):

0.05 Mm

Spindle Motor Power(kw):

9kw

Cnc Or Not:

CNC

Place Of Origin:

Shandong, China

Brand Name:

Super Star

Voltage:

380V

Dimension(l*w*h):

2.3*32*1.85meter

Power (kw):

Weight (kg):

1600

Control System Brand:

Syntec

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox

Product Name:

CNC Wood Working Machine

Control System:

KND Controller System

Spindle Power:

9.0KW Atc Air Cooling Spindle

Working Size:

1300*2500mm

Machine Table:

Vacuum Table

Inverter:

7.5kw Inverter

Transmission:

Helical Rack Pinion

Driving System:

Servo Driver And Motor

Guiding System:

Square Guide Rail

Application:

Mdf, Wood Engraving, Aluminium Cutting

Condition:

New

Warranty Of Core Components:

1 Year

Applicable Industries:

Manufacturing Plant, Home Use, Construction Works , Advertising Company, Furniture Factory

Highlight:

9kw Atc Cnc Router

3axes Atc Cnc Router Machinery

3 Axes Atc Cnc Woodworking Machine

Product Description

Atc Cnc Router Cnc Awoodworking Machinery Router Atc 9kw Atc Cnc Router

Product Description

ATC CNC Router CNC Woodworking Machinery Router ATC 9kw ATC CNC Router

ATC CNC Router Advantages:

1. Introduce a new generation of Kandy control system, intelligent processing cross-border protection function.

2. The whole bed is welded and tempered by steel structure, which has strong rigidity and no distortion.

3. Using high-power tool-changing spindle, the cutting force is high.

4. Large independent cabinet, separate keyboard operation, simple and convenient, easy to learn.

Technical Paramaters:
Description	Description
X Y Z axis working area	1300mm2500mm200mm
Machine table	Vacuum table
Structure	Industrial class square tube strong structure
Working area	20003000200mm
Spindle	9.0KW atc air cooling spindle
control system	Beijing KND servo motor made in China
Motor and driver	servo motor
Inverter	11kw XFT Inverter
Reducer	Japan Shimpo reducer
Lubrication	Auto Lubrication system
Voltage	380v/50hz
Guarantee	12 months

PS: All the working area and specifications can be customized according to your requests.

Detailed Images

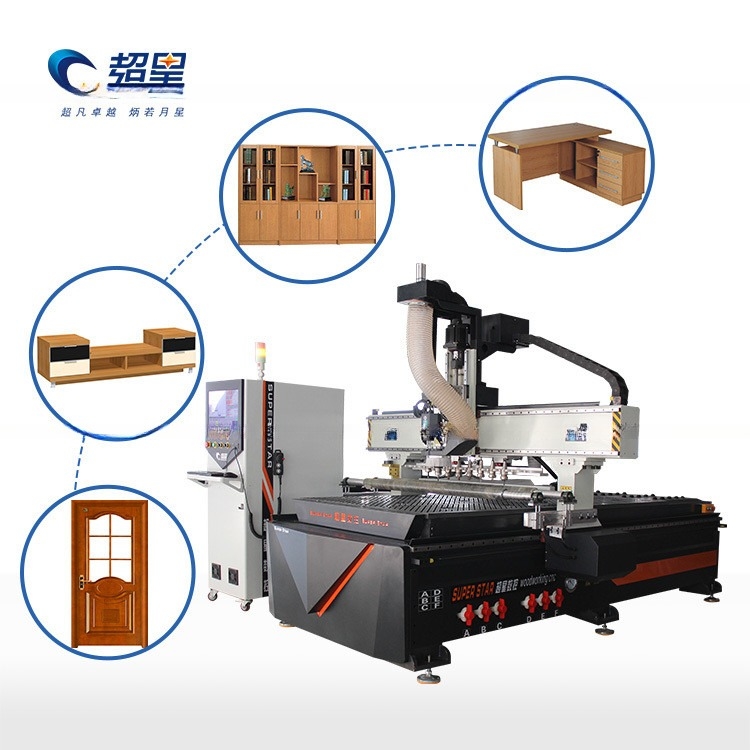

Application:

ATC CNC Router Application:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on. 2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. 3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
