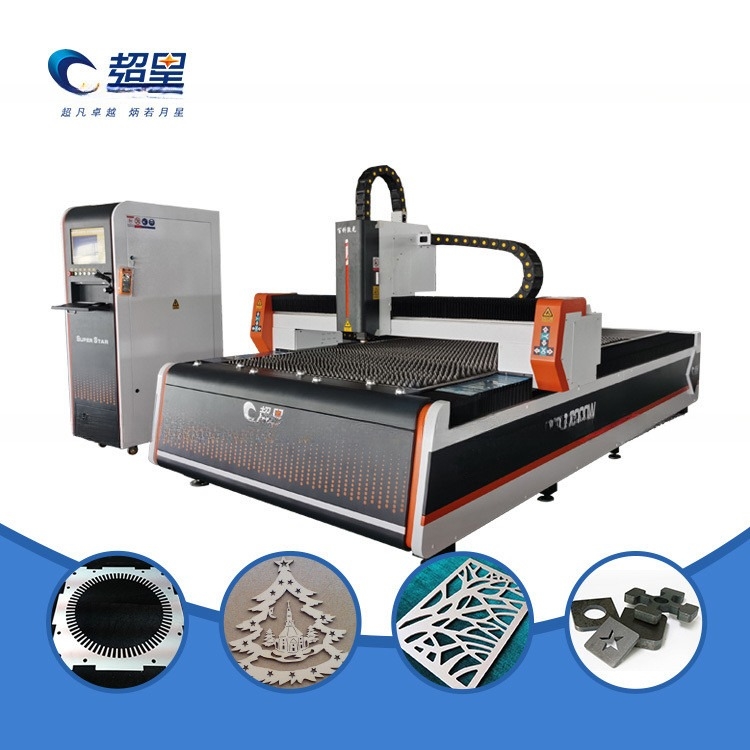

3 Axis Stainless Steel Laser Cutting Machine , Cnc Fiber Laser Cutting Machine

Brand Name:	GTS
Price:	CN¥182,747.50/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Applicable Material:

Metal, Stainless Fiber Laser Cutting Machine

Condition:

New

Laser Type:

Fiber Laser

Cutting Area:

1500*3000mm

Cutting Speed:

0-1000mm/s

Graphic Format Supported:

AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Cutting Thickness:

0-10mm Depends

Cnc Or Not:

Yes

Cooling Mode:

WATER COOLING

Place Of Origin:

Shandong, China

Brand Name:

SUPER STAR

Laser Source Brand:

RAYCUS

Laser Head Brand:

Raytools

Servo Motor Brand:

Yaskawa

Guiderail Brand:

THK

Control System Brand:

Cypcut

Weight (kg):

3000 KG

Key Selling Points:

Automatic

Warranty:

1 Year

Mode Of Operation:

Continuous Wave

Configuration:

3-axis

Products Handled:

Sheet Metal And Tube

Feature:

Water-cooled

Product Name:

Fiber Laser Cutting Machine

Function:

Cutting Metal Materials

Laser Power:

500W / 1000W / 2000W / 3000W

Driving System:

Japan Yaskawa Servo Motor

Cutting Materials:

Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )

Laser Source:

Raycus IPG NLIGHT Laser Source

Control System:

Cypcut Control System

Software Supported:

Artcut CoreDraw Photoshop AutoCAD

Laser Head:

Raytools

Keyword:

Fiber Laser Cutting Machiens

Application:

LASER CUTTING

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Control Software:

Cypcut

Applicable Industries:

Building Material Shops, Farms, Home Use, Advertising Company, Laser Cutting Machine

Highlight:

Stainless Steel Laser Cutting Machine

3 Axis Cnc Fiber Laser Cutting Machine

Product Description

laser cutting machine stainless steel laser cutting machine cnc fiber laser cutting machine

Laser power	500W (optional 1000W 1500w 2000w)
Laser wavelength	_1064nm
Laser type	MAX Raycus IPG
Free speed	80m/min
Positioning accuracy	±0.05mm/m
Control System	Auto3tech Cypcut
Auxiliary cutting gas	oxygen, nitrogen, air

Fiber Laser Cutting Machine Product Advantages:

1. In terms of accessories: servo motors, reducers, guides, etc. are all imported originals.

2, in terms of accuracy: the use of high-precision grinding teeth, imported guide rails, imported cutting heads, etc., after a rigorous assembly process, to ensure the speed and accuracy of the machine.

3, cutting: the use of the original imported cutting head, combined with high-speed and high-precision accessories to ensure the quality of cutting.

4, the laser can be selected according to the customer's own needs, are free maintenance products.

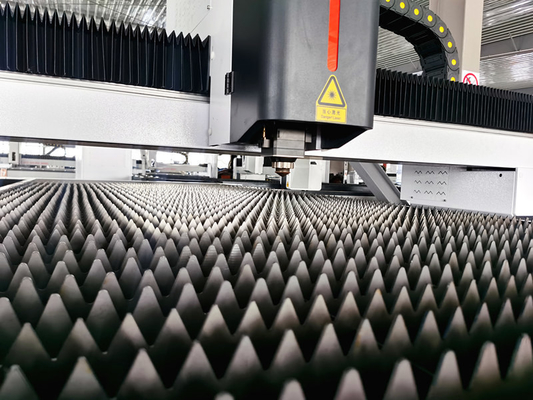

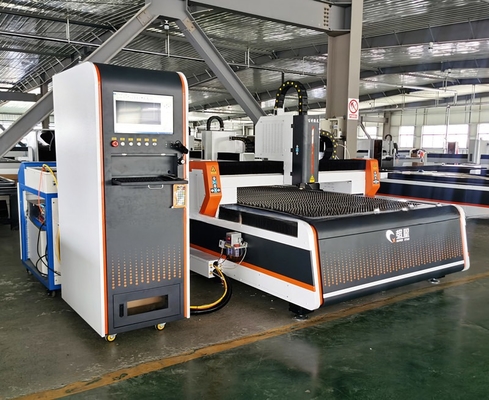

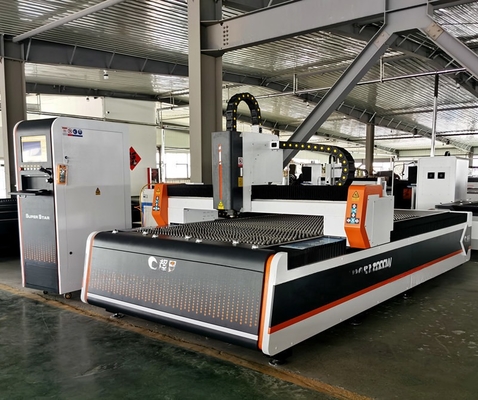

Detailed Images

1. High performance Through optical fiber transmission, it can achieve equal quality cutting at any point.

2, the cutting speed is fast, about twice the cutting speed of the CO2 laser machine. Low cost of use.

3, low gas consumption Laser cutting does not produce any gas, there is a special cutting process for steel plates

4, low energy consumption Environmental protection and energy saving, product power consumption is very low.

5, maintenance-free fiber transmission, no need for reflective lenses, save a lot of time in the optical path adjustment, maintenance-free.

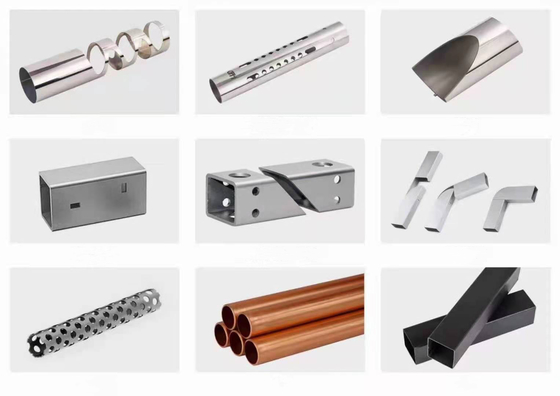

Finished Sample

Company Information

Jinan Jinshengxing Machinery Equipment Co., Ltd. is a manufacturer of cnc router and laser machine. Produces Superstar Brand products, such as plate furniture making machines, ATC cnc router, panel saw, beam saw, edge banding machine, cnc engraving machine for wood ,advertisment, etc.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Please feel free to send us inquiry or message to know more about the machine

Response will be within 1 minutes during working time, And within 6 hours during off duty time

If you haven't found the machine you need, don't hesitate to contact us too. We
Superstar had been in this industry since 2003, will do best to give you the best suggestion
