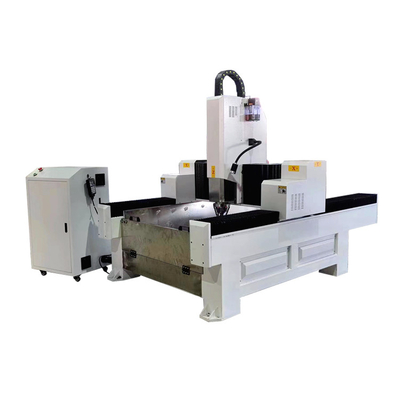

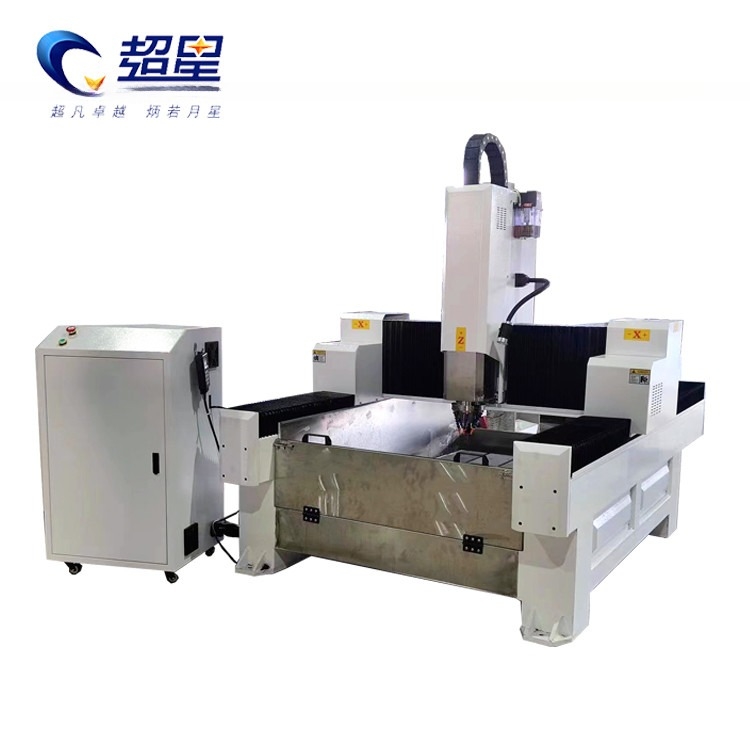

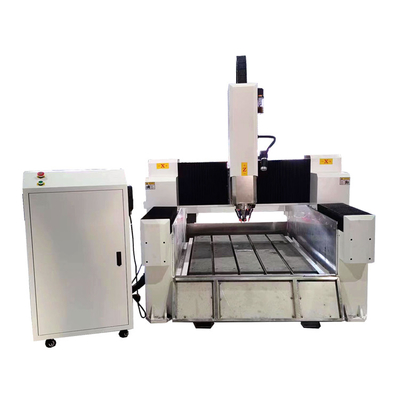

Three Axis Steel Structure Stone Cutting Router Machine For Granite Marble Cutting

Brand Name:	GTS
Price:	CN¥38,742.47/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Type:

Stone Cutting Machine

Use:

Granit,marble,limestone Etc

Voltage:

AC220V/380V 50/60Hz

Power:

5.5 KW

Dimension(L*W*H):

4000*1500*3100

Weight:

1900 Kg

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Cutting Thickness (max):

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Motor, Bearing, Gear, Pump, Gearbox

Control System:

DSP A11E

X Working Area:

1300mm

Y Working Area:

2500mm

Z Working Area:

300mm

Spindle Power Motor:

HQD 5.5 KW Water Cooling Spindle

Drive Motor:

Leadshine860 Driver And Step Motor 450B

Working Voltage:

AC220V/380V 50/60Hz

Guide Rail:

25mm Square Rail

N.W./G.W.:

1900KGS

Application:

Stone Marble Granite Quartz Sandstone

Highlight:

Steel Structure Stone Cutting Router

Three Axis Stone Cutting Router Machine

Product Description

Stone Rock Saw Cutting Machine Granite Cutting Machine Stone Marble Cutting Machine

Product Description

stone rock saw cutting machine granite cutting machine stone marble cutting machine

Superstar CNC Stone Machine Feature:

1, three axis full linear square guide rail, effectively ensure the accuracy and stability of mechanical operation.

2, the bed is thickened steel pipe structure, the bearing force can reach more than one ton, strong and durable without deformation.

3, three axis dust-proof structure, effectively protect dust or water erosion guide rail and lead screw, improve the life of the machine tool.

4, high power 5.5kw water cooled spindle, imported bearing configuration, spindle noise is low, large power, long life.

5, dimension macro control, computer type independent cabinet, beautiful, easy to operate.

6, rack drive, high precision, long life.

7, equipped with a sink, two-way cooling tool, effectively improve the service life of the tool.

8, good software compatibility, compatible with Type3/Artcam/Castmate/ Wentai and other CAD/CAM design software.

Control System	DSP A11E
X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	300mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Surface	Steel working table with water tank
Body structure	T types Steel structure
X,Y ,Z Structure	square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis
Max. Power Consumption(Without spindle)	1.84KW
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	15000mm/min
Spindle Power Motor	HQD 5.5 KW water cooling spindle
Spindle Speed	0-24000r/min
Drive Motor	Leadshine860 driver and step motor 450B
Command	G-code.u00.mmg*.plt
Inverter	EURA 5.5kw
Working voltage	AC220V/380V 50/60Hz

Detailed Images

Application:

Granite, marble, bluestone, sandstone, glass and other stone carving, granite and other hard stone can be carved to 3mm, marble, bluestone and other carving and cutting; Metal aluminum profiles, thin copper milling.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
