1325 Cnc Wood Router Machine Computer Controlled Multifunctional For Carving Wood

All Category

Additional CNC Machines

Mr. stailesspro

bill@stailesspro.com

17685827989

Contact Now

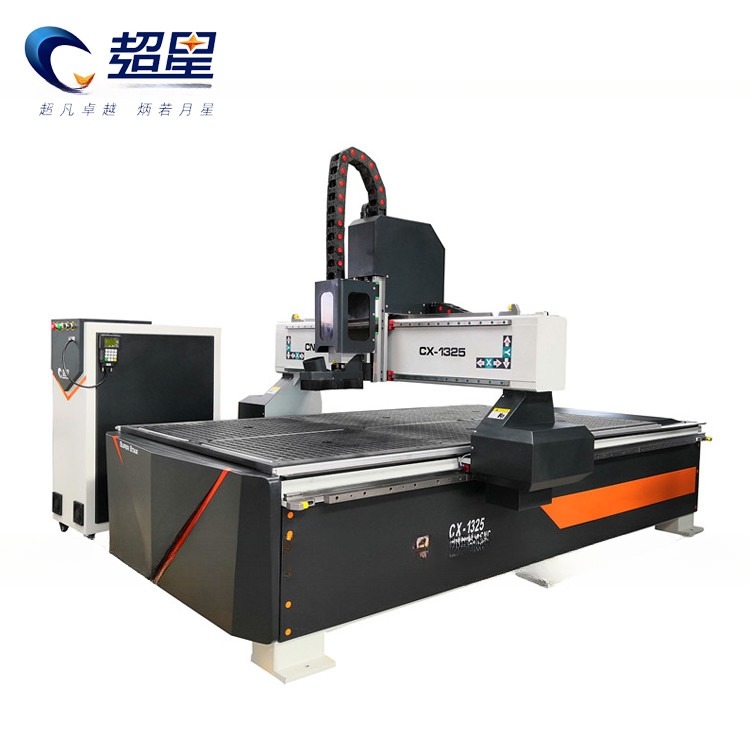

1325 Cnc Wood Router Machine Computer Controlled Multifunctional For Carving Wood

Brand Name:	GTS
Price:	CN¥25,584.65/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Range Of Spindle Speed(r.p.m):

1 - 24000 Rpm

Positioning Accuracy (mm):

0.05 Mm

Number Of Axes:

No. Of Spindles:

Single

Working Table Size(mm):

1300×2500

Machine Type:

CNC Router

Travel (x Axis)(mm):

1300 Mm

Travel (y Axis)(mm):

2500 Mm

Repeatability (x/y/z) (mm):

0.05 Mm

Spindle Motor Power(kw):

3kw

Cnc Or Not:

CNC

Place Of Origin:

Shandong, China

Brand Name:

Superstar CNC

Voltage:

380V/50HZ

Dimension(l*w*h):

2.3*32*1.85meter

Power (kw):

Weight (kg):

850

Control System Brand:

Mach3, DSP, RichAuto

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Motor, Pump

Product Name:

Cnc Engraving Cutting Machine

Control System:

Touch Screen Control System-Ucancam With Dsp Handwheel

Spindle:

3kw Water Cooling Spindle

Working Area:

1300x2500x200mm

Table:

T-slot Table

Driving Motor:

JMK 860 Stepper Driver

Transmission:

Helical Rack Pinion

Guide Rail:

Square Rail

Driving System:

Stepper Driver And Motor

Application:

MDF WOOD ACRYLIC ALUMINUM

Condition:

New

Warranty Of Core Components:

1 Year

Applicable Industries:

Manufacturing Plant, Home Use, Construction Works , Advertising Company, Advertising Industry

Highlight:

1325 Cnc Wood Router Machine

Computer Controlled Cnc Wood Router

Product Description

Wood Cnc Machine Price Cnc Machine Router Cnc 1325 Wood Router Machine For Carving 1325 Cnc Wood Router Machine Computer Controlled Multifunctional For Carving Wood 0

Product Description

wood cnc machine price cnc machine router cnc 1325 wood router machine for carving wood

CNC Engraving Cutting Machine Features:

* V industrial led design, more beautiful

* Ucancam control system with touch screen and handwheel, easy operation * Ucancam V12 software, easy make design with competitive price * Taiwan Square rail * Tool Sensor for Z axis calibration

Product name	woodworking carving machine
X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	200m
Traveling Positioning Accuracy	±0.05mm
Repositioning Accuracy	±0.05mm
X,Y ,Z Structure	XY gear wheel, Z ball screw
Machine Table	T-slot
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	30000mm/min
Spindle	3kw water cooled spindle
Spindle Speed	0-24000rpm
Driving Motor	JMK 860 stepper driver
Frequency converter	Xinfutai brand 3kw
Command	G-code.u00.mmg*.plt
Working voltage	AC220V/50Hz
Control System	DSP control
Guide rail	Square guide rail
Control cabinet	Independent cabinet

Detailed Images

Application:

CNC Engraving Cutting Machine Application:

Advertising industry: acrylic cutting, MDF engraving cutting and engraving, wood decoration products making. Recommend model CX1325 cnc wood router.

Wood door: MDF and wood door engraving, recommend model: CXM25 cnc router 1325

Wood furniture: cabinet door making with complicated design, recommend model:
Multi- heads pneumatic ATC router cnc, Linear auto tool changing cnc router, Carousel wood cnc router with 12 disc tools

Panel furniture: wood panel cabinet making, recommend model: automatic loading unloading penal processing cnc router with drilling/boring bits.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Please Feel Free To Send Us Inquiry Or Message To Know More About The Shipping Response Will Be Within 1 Minutes During Working Time, And Within 6 Hours During Off Duty Time.

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Please feel free to send us inquiry or message to know more about the machine

Response will be within 10 minutes during working time, And within 8 hours during off duty time

If you haven't found the machine you need, don't hesitate to contact us too. We
Superstar had been in this industry since 2003, will do best to give you the best suggestion
