1300×2500mm CNC Wood Router Machine For Kitchen Cabinet And Furniture Production

All Category

Additional CNC Machines

Mr. stailesspro

bill@stailesspro.com

17685827989

Contact Now

1300×2500mm CNC Wood Router Machine For Kitchen Cabinet And Furniture Production

Brand Name:	GTS
Price:	CN¥87,718.80/sets 1-2 sets

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Range Of Spindle Speed(r.p.m):

1 - 24000 Rpm

Positioning Accuracy (mm):

0.05 Mm

Number Of Axes:

No. Of Spindles:

Multi

Working Table Size(mm):

1300×2500

Machine Type:

CNC Router

Travel (x Axis)(mm):

1300 Mm

Travel (y Axis)(mm):

2500 Mm

Repeatability (x/y/z) (mm):

0.05 Mm

Spindle Motor Power(kw):

6kw*2, 4.5KW*2 Air Cooling Spindle

Cnc Or Not:

CNC

Place Of Origin:

Shandong, China

Brand Name:

SUPER STAR

Voltage:

AC380V/50HZ

Dimension(l*w*h):

1300*2500mm

Power (kw):

Weight (kg):

1500

Control System Brand:

NC Studio, Syntec

Warranty:

One Year

Key Selling Points:

Multifunctional

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox

Name:

Multiheads Router Cnc

Control System:

LNC

Spindle:

6kw*2, 4.5KW*2 Air Cooling Spindle

Motor:

Servo Motor

Working Area:

1300x2500mm

Transmission:

Taiwan TBI Square Rail And Ball Screw

Inverter:

XFT

Cabinet:

Independence Cabinet

Keywords:

Cnc Router

Application:

MDF WOOD ACRYLIC ALUMINUM

Condition:

New

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction Works , Advertising Company

Warranty Of Core Components:

1 Year

Highlight:

1300×2500mm CNC Wood Router Machine

Kitchen Cabinet CNC Wood Router

Product Description

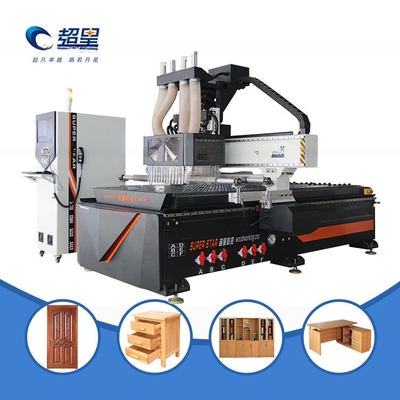

1300×2500mm Working Table Size CNC Wood Router Machine For Kitchen Cabinet And Furniture Production Line

Product Description

cnc wood router machine 1325 atc cnc router mdf cutting kitchen cabinet furniture making machine price

Application areas of our cnc wood four processing router machine:

Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe-shoes, game consoles and panels, mahjong tables,
computer tables and auxiliary processing of panel furniture products.

Features of multiheads router cnc:

1. The whole bed is welded by seamless steel structure, tempering and aging treatment, with strong rigidity and no deformation.

2. Taiwan linear square guide, double row of four row ball slide block, heavy load bearing, smooth operation, high precision, long life, double screw with high precision and precision cutting.

3. Original air cooling spindle 6kW and 4.5kw and the cutting intensity is large.

4. With independent cabinet, separate keyboard operation, split type keyboard operation,easy to learn, and flexibly grasp the use of equipment, more independent.

5. With vacuum equipment and the six zoning vacuum adsorption table is specially designed for the soft material, such as density plate. It can also place different sizes of plates, keep the flatness of the plate surface, make the engraved effect diagram consistent, and improve the loading and unloading time. The vacuum system can be processed in the processing process. Remove wood chips and froth, keep the worktable clean and maintain the equipment indirectly.

X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	200mm
Table size	1300x2500mm
Traveling Positioning Accuracy	±0.02mm
Repositioning Positioning Accuracy	±0.02mm
Table Surface	vacuum table with vacuum pump
X,Y ,Z Structure	XY gear wheel, Z ball screw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	25000mm/min
Spindle	4.5/6KW Air cooling spindle*4
Spindle Speed	18000r/min
Motor	Servo Motors and drivers
Driver	servo
Command	G-code.u00.mmg*.plt
Working voltage	AC 380V/50HZ
Control System	LNC control system
Guide rail	25 Square rail (TAIWAN TBI/HIWIN )
N.W./G.W.	1500KG

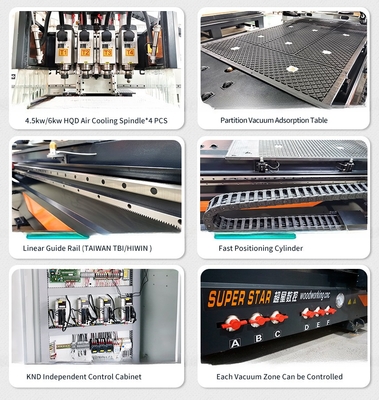

Detailed Images

Samples of CNC

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Company Information

Jinan Jinshengxing Machinery Equipment Co., Ltd. is a manufacturer of cnc router and laser machine. Produces Superstar Brand products, such as plate furniture making machines, ATC cnc router, panel saw, beam saw, edge banding machine, cnc engraving machine for wood ,advertisment, etc.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Please feel free to send us inquiry or message to know more about the machine

Response will be within 1 minutes during working time, And within 6 hours during off duty time

If you haven't found the machine you need, don't hesitate to contact us too. We
Superstar had been in this industry since 2003, will do best to give you the best suggestion
